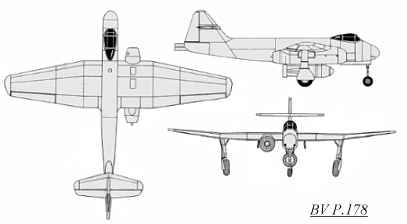

This asymmetric designed dive-bomber had one Jumo 004B turbojet located
under the wing to the starboard side of the fuselage. The pilot sat in
a cockpit in the forward fuselage, with a large fuel tank located to the
rear of the cockpit. Beneath the fuel tank there was a deep recession in
which a SC 500 bomb could be carried within the fuselage, or a SC 1000
bomb which would protrude slightly out of the fuselage. Two solid-fuel
auxillary rocket engines extended from the rear, and may have possibly
been used for take-off or for climbing after a dive-bombing attack. Two
MG 151 15mm machine guns were located in the nose.
View Josha Hildwine's BV P.178 LuftArt images
Span: 12 m (39' 3") Length: 10.8 m (35' 5.5") Max. Speed: Unknown
