Messerschmitt Me P.1092/3

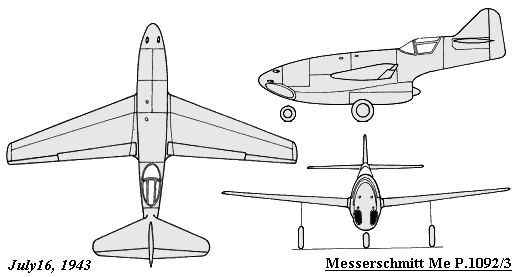

          With the Messerschmitt Me P.1092/3 design, the design team made more changes to the P.1092. The cockpit was moved to the rear, where it was faired into the single vertical fin. The air intake was now divided into two intakes, located beneath the nose, and fed the single Jumo 004C jet engine. The landing gear remained more or less the same, and with the forward fuselage now unoccupied, a heavier armament of four MK 108 30mm cannon could be concentrated in the nose. This Messerschmitt design bears a resemblance to the later Me P.1106, and the same problems would have surfaced; namely, pilot visibility from the cockpit located so far in the rear.


Messerschmitt Me P.1092/3 Dimensions
  Span      Length      Height      Wing Area      Aspect Ratio
9.4 m
30' 9"
8.1 m
26' 6"
3.6 m
11' 9"
12.7 m²
136 ft²
7.0:1
The Messerschmitt Me P.1092/3 weights and performances should be comparable to the Me P.1092/2


Messerschmitt Me P.1092/3 Models
There are no scale models currently of any of these aircraft








Above color image from: Luftwaffe Secret Projects: Fighters (right)
